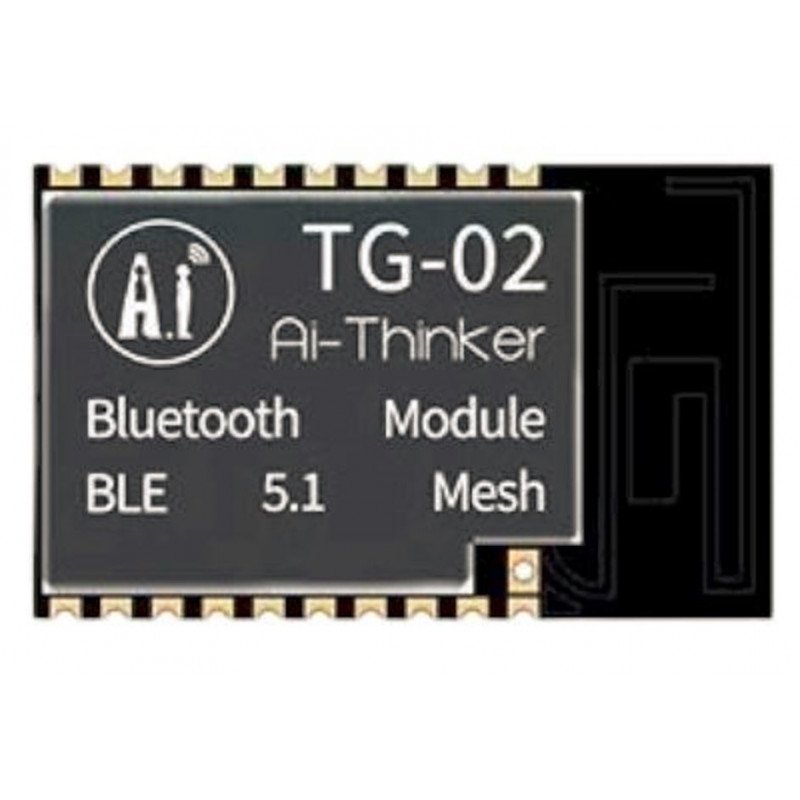

TG-02 Bluetooth Low Energy Module
The TG-02 is a compact Bluetooth Low Energy module built around the TG7120B (SOP16) SoC, offering high integration and ultra-low power consumption. Designed for IoT, smart home, wearable, and mobile device applications, it features a 32-bit CK802 processor, 64KB SRAM, 512KB Flash, 96KB ROM, and a 256-bit fuse.

It supports BLE 5.1 and BLE Mesh, enabling secure, reliable connectivity with features like OTA updates and AES hardware encryption. The TG-02 also provides rich peripheral support including UART, PWM, ADC, I2C, SPI, PDM, DMA, and up to 11 GPIOs.

Key Features:

• BLE 5.1 with Mesh support

• Data rates: 125Kbps, 500Kbps, 1Mbps, 2Mbps

• Supports broadcast extension and multi-channel selection

• Integrated AES hardware encryption

• CK802 32-bit processor

• 64KB SRAM, 512KB Flash

• Peripherals: UART, PWM, ADC, I2C, SPI, PDM, DMA, 11 GPIOs

• OTA upgrade support
